MacBook Pro 13", Early 2011 - Late 2011, MC700LL/A, Board#820-2936-A, 820-2936-B
Type: MacBook Pro
The 2011 models of the 13" MacBook Pro were especially prone to GPU issues, so watch out for video artifacts!
Page in development, please check back in 1-2 weeks...thanks!

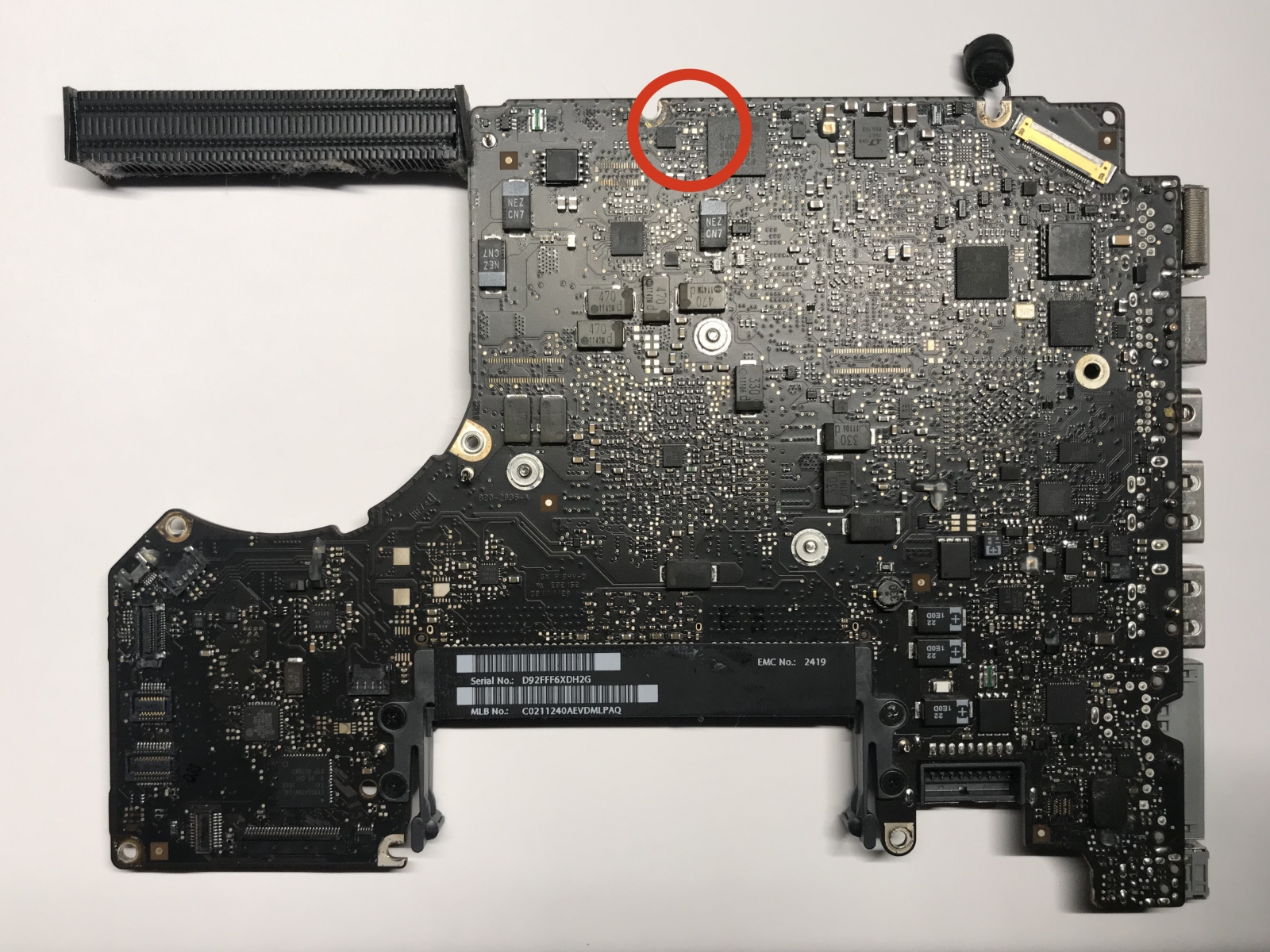

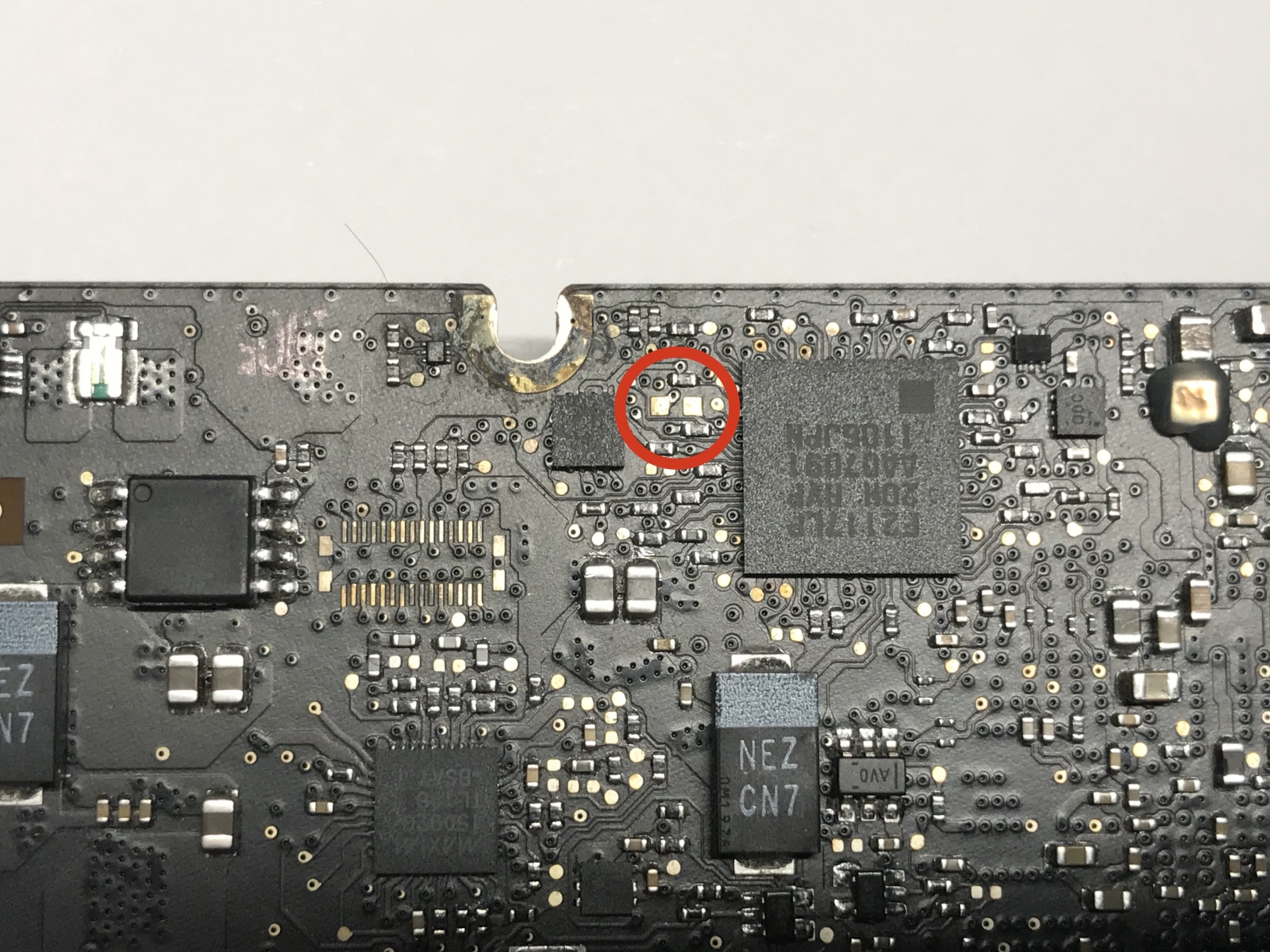

Power-on pads are two tiny metal surfaces on MacBook logic boards. When the pads are bridged by a metal object, the board powers on. Considering the power button’s connection to the board is often severed by a liquid-damaged keyboard (the power button is connected to the keyboard), it is often necessary to pull the keyboard cable and jump the board using power-on pads in order to determine if the board is still good. The pads exist in different locations on each model board -- this guide will help you find them
