MacBook Pro 15" Retina, A1398, Early 2013, ME664LL/A, ME665LL/A, ME698LL/A, Board#820-3332-A

MacBook Pro 15" Retina, A1398, Early 2013, ME664LL/A, ME665LL/A, ME698LL/A, Board#820-3332-A

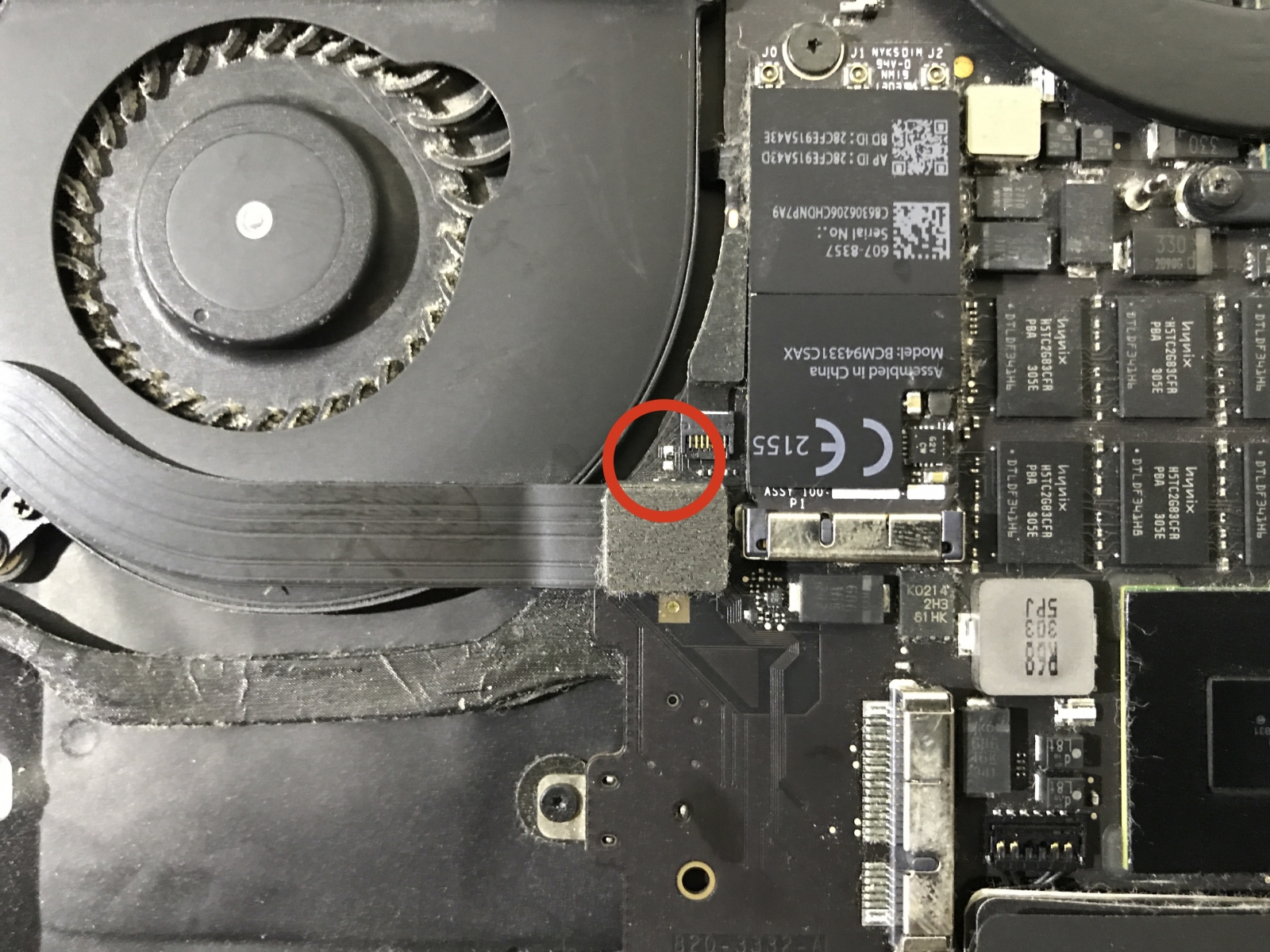

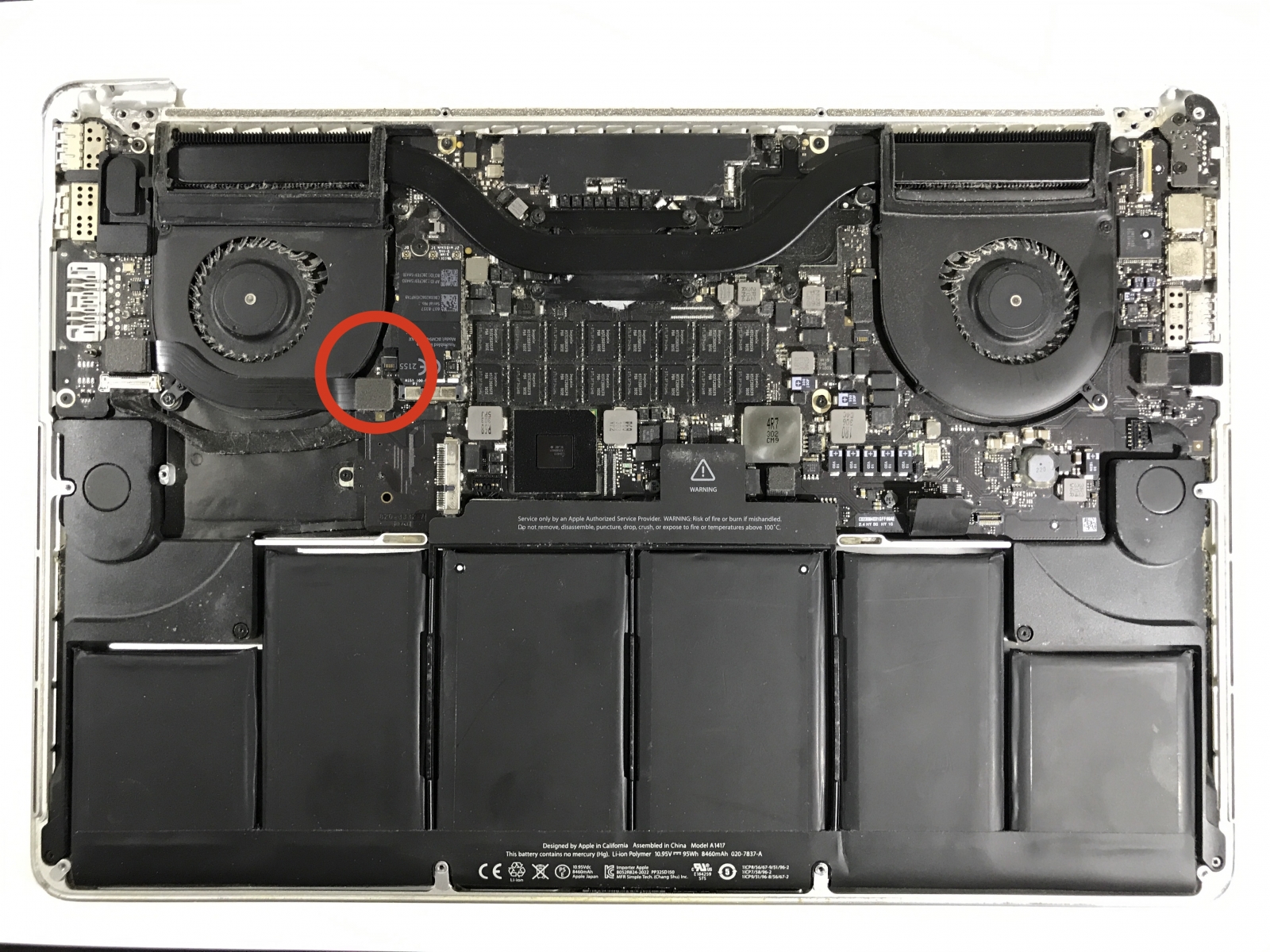

Slightly hidden, and slightly above cable (shown with cable in place, and cable pulled back).

You can also short pin 5 to pin 29 or ground, although there's no need to do this becase you have power-on pads!  However, if the pads are damaged (which can happen!), this offers a good alternate option.

  • MacBook Pro 15" Retina, A1398, Early 2013, ME664LL/A, ME665LL/A, ME698LL/A, Board#820-3332-A image #1

Power-on pads are two tiny metal surfaces on MacBook logic boards.

To find the pads for a particular board, enter the year, screen size, and computer type below, and the relevant logic board with power-on pad locations will appear.  Click on the images for details and additional pictures.

Please let me know if you find errors, and if you have images of boards not listed, and I will be happy to include them!
